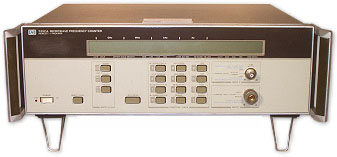

Agilent/HP 5352A
- Agilent/HP 5352A (500MHz-40GHz 微波频率计)
- 欲购买或租赁Agilent/HP 5352A？请在线咨询或拔打电话：0755-83777077
 |
| 品牌型号： Agilent/HP 5352A 库存状态：预订 |
| 类别： 频率计 -> 微波频率计 |
|
|
|
|
详细资料：
- Frequency Range:
- 10 Hz to 525 MHz
- 50 ohms: 10 MHz to 525 MHz
- 1 Mohm: 10 Hz to 80 MHz
- Sensitivity:
- 50 ohms: 10 MHz to 525 MHz, 25 mV rms
- 1 Mohm: 10 Hz to 80 MHz, 25 mV rms
- Maximum Input: 50 ohms: + 10 dBm; 1 Mohm: 1V rms
- Coupling: AC
- Connector: Replaceable fuse, type BNC (female)
- Impedance: 1 Mohm nominal shunted by <70 pF or 50 ohm nominal
- Resolution: Selectable, 1 Hz to 1 MHz
- High Resolution: 1 Mohm mode: 0.001 Hz for <100 kHz input; 0.01 Hz for <1 MHz input; 0.1 Hz for <10 MHz input; 1 Hz for >10 MHz input: 1-second gate.
仪器保证：
我们的大多数设备在装运之前均经过严格的质量检测与校验。也可申请国家计量证书。
